瑞士 +GF+

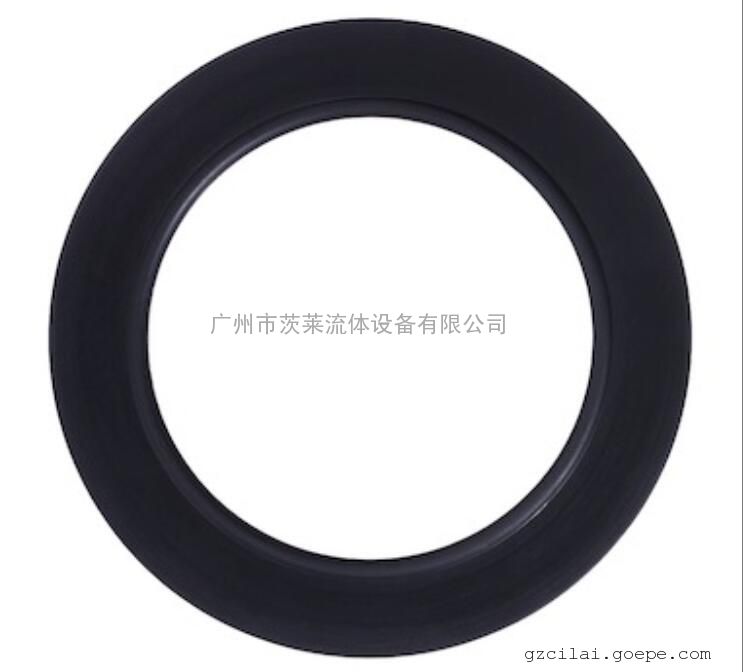

凸面法兰垫片 公制
聚氟乙烯具有耐高温和耐化学腐蚀性的特点，可以确保整个流程的高水质
型号：
适用于所有GF品牌法兰适配器
硬度：EPDM肖氏70°，FPM肖氏75°
EPDM: DVGW W 270及KTW 认证
由螺栓内内缘对中
内衬材料: 碳钢
Rubber-steel body combined with rubber profile cord ring
内径可以匹配法兰适配器
技术参数
| 全部 |
|
d
(mm) |
|
PN
(bar) |
|
DN
(mm) |
|
EPDM
code |
|
补充尺寸 |
|
CAD |
| |
|
16 |
|
16 |
|
10 |
|
|
|
|
|
|
| |
|
20 |
|
16 |
|
15 |
|
|
|
|
|
|
| |
|
25 |
|
16 |
|
20 |
|
|
|
|
|
|
| |
|
32 |
|
16 |
|
25 |
|
|
|
|
|
|
| |
|
40 |
|
16 |
|
32 |
|
|
|
|
|
|
| |
|
50 |
|
16 |
|
40 |
|
|
|
|
|
|
| |
|
63 |
|
16 |
|
50 |
|
|
|
|
|
|
| |
|
75 |
|
16 |
|
65 |
|
|
|
|
|
|
| |
|
90 |
|
16 |
|
80 |
|
|
|
|
|
|
| |
|
110 |
|
16 |
|
100 |
|
|
|
|
|
|
| |
|
125 |
|
16 |
|
100 |
|
|
|
|
|
|
| |
|
140 |
|
16 |
|
125 |
|
|
|
|
|
|
| |
|
160 ‐ 180 |
|
16 |
|
150 |
|
|
|
|
|
|
| |
|
200 |
|
16 |
|
200 |
|
|
|
|
|
|
| |
|
225 |
|
16 |
|
200 |
|
|
|
|
|
|
| |
|
250 |
|
16 |
|
250 |
|
|
|
|
|
|
| |
|
280 |
|
16 |
|
250 |
|
|
|
|
|
|
| |
|
315 |
|
16 |
|
300 |
|
|
|
|
|
|
| |
|
355 |
|
16 |
|
350 |
|
|
|
|
|
|
| |
|
400 |
|
16 |
|
400 |
|
|
|
|
|
|
| |
|
450 |
|
16 |
|
500 |
|
|
|
|
|
|
| |
|
500 |
|
16 |
|
500 |
|
|
|
|
|
|
| |
|
560 |
|
16 |
|
600 |
|
|
|
|
|
|
| |
|
630 |
|
16 |
|
600 |
|
|
|
|
|
|
| 全部 |
|
d
(mm) |
|
PN
(bar) |
|
DN
(mm) |
|
FPM
code |
|
补充尺寸 |
|
CAD |
| |
|
16 |
|
16 |
|
10 |
|
|
|
|
|
|
| |
|
20 |
|
16 |
|
15 |
|
|
|
|
|
|
| |
|
25 |
|
16 |
|
20 |
|
|
|
|
|
|
| |
|
32 |
|
16 |
|
25 |
|
|
|
|
|
|
| |
|
40 |
|
16 |
|
32 |
|
|
|
|
|
|
| |
|
50 |
|
16 |
|
40 |
|
|
|
|
|
|
| |
|
63 |
|
16 |
|
50 |
|
|
|
|
|
|
| |
|
75 |
|
16 |
|
65 |
|
|
|
|
|
|
| |
|
90 |
|
16 |
|
80 |
|
|
|
|
|
|
| |
|
110 |
|
16 |
|
100 |
|
|
|
|
|
|
| |
|
125 |
|
16 |
|
100 |
|
|
|
|
|
|
| |
|
140 |
|
16 |
|
125 |
|
|
|
|
|
|
| |
|
160 ‐ 180 |
|
16 |
|
150 |
|
|
|
|
|
|
| |
|
200 |
|
16 |
|
200 |
|
|
|
|
|
|
| |
|
225 |
|
16 |
|
200 |
|
|
|
|
|
|
| |
|
250 |
|
16 |
|
250 |
|
|
|
|
|
|
| |
|
280 |
|
16 |
|
250 |
|
|
|
|
|
|
| |
|
315 |
|
16 |
|
300 |
|
|
|
|
|
|
| |
|
355 |
|
16 |
|
350 |
|
|
|
|
|
|
| |
|
400 |
|
16 |
|
400 |
|
|
|
|
|
|
| |
|
450 |
|
16 |
|
500 |
|
|
|
|
|
|
| |
|
500 |
|
16 |
|
500 |
|
|
|
|
|
|
| |
|
560 |
|
16 |
|
600 |
|
|
|
|
|
|
| |
|
630 |
|
16 |
|
600 |
