瑞士 +GF+

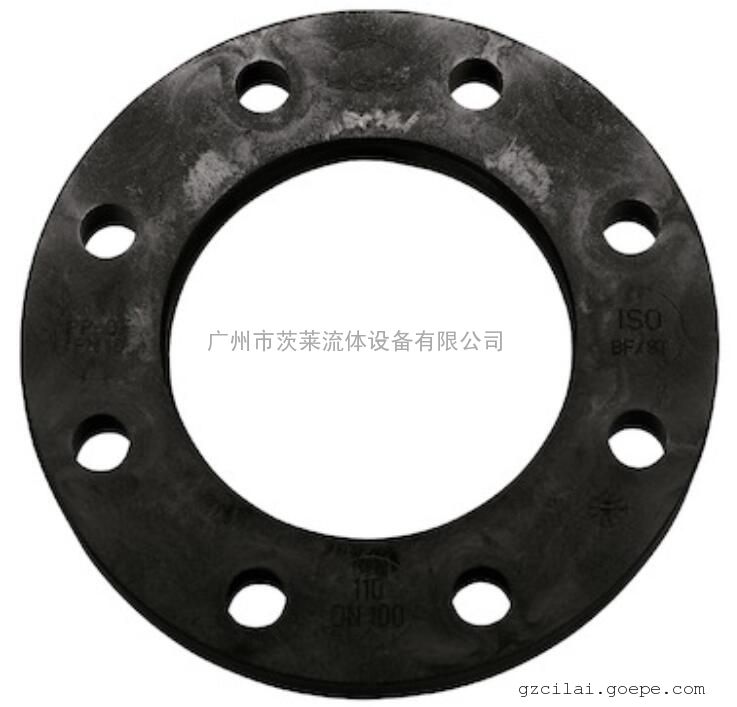

Backing flange PP-Steel metric 法蘭片 (包鐵)
For butt fusion systems metric 對焊、承插焊 公制
聚氟乙烯具有耐高温和耐化学腐蚀性的特点，可以确保整个流程的高水质。
型号：
材料：钢衬PP（30%玻璃纤维增强）
连接尺寸: ISO 7005, EN 1092, BS 4504, DIN 2501
螺栓孔尺寸PN10
AL：螺栓孔数
1) Suitable for socket -and butt fusion systems
2) Combined version, bolt circle metric - ANSI
技术参数
| 全部 |
|
remarks |
|
d
(mm) |
|
DN
(mm) |
|
PN
(bar) |
|
code |
|
补充尺寸 |
|
CAD |
| |
|
1 |
|
20 |
|
15 |
|
16 |
|
|
|
|
|
|
| |
|
1 |
|
25 |
|
20 |
|
16 |
|
|
|
|
|
|
| |
|
1 |
|
32 |
|
25 |
|
16 |
|
|
|
|
|
|
| |
|
1 |
|
40 |
|
32 |
|
16 |
|
|
|
|
|
|
| |
|
1 |
|
50 |
|
40 |
|
16 |
|
|
|
|
|
|
| |
|
1 |
|
63 |
|
50 |
|
16 |
|
|
|
|
|
|
| |
|
1 |
|
75 |
|
65 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
90 |
|
80 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
110 |
|
100 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
125 |
|
100 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
140 |
|
125 |
|
16 |
|
|
|
|
|
|
| |
|
2 |
|
160 |
|
150 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
180 |
|
150 |
|
16 |
|
|
|
|
|
|
| |
|
2 |
|
200 |
|
200 |
|
16 |
|
|
|
|
|
|
| |
|
2 |
|
225 |
|
200 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
250 |
|
250 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
280 |
|
250 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
315 |
|
300 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
355 |
|
350 |
|
16 |
|
|
|
|
|
|
| |
|
|
|
400 |
|
400 |
|
16 |
|
|
